Manual Surface Grinder

Get a Price/Quote

Product Details:

General Use Industrial
Material Cast Iron
Feature High Performance, High Efficiency
Color White Blue
Warranty Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Manual Surface Grinder Price And Quantity

Minimum Order Quantity 1 Unit

Manual Surface Grinder Product Specifications

Feature High Performance, High Efficiency
General Use Industrial
Material Cast Iron
Warranty Yes
Color White Blue

Manual Surface Grinder Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Model	Parameter	UOM	ISG-A-618 M	ISG-A-820 M	ISG-A-1024 M
Machining Range	Grinding length X width	mm (inch)	150x450 (6 x18 inch)	200x500 (8 x 20 inch)	250x600 (10 x 24 inch)
	Distance between table and spindle center (max)	mm (inch)	250 (10 inch)	400 (16 inch)	400 (16 inch)
	Working surface	mm (inch)	150x450 (6 x18 inch)	200x500 (8 x 20 inch)	250x600 (10 x 24 inch)
Table	Max Longitudinal movement	mm (inch)	475 (19 inch)	525 (21 inch)	625 (25 inch)
Table	Max cross movement	mm (inch)	160 (61/4 inch)	212 (81/2 inch)	262 (101/2 inch)
Longitudinal movement cross movement	Max table speed	m/min	5-25
	Manual feed rate/ Turn	mm (inch)	5 (0.2 inch)
	Least count of hand wheel	mm (inch)	0.05 (0.0012 inch)
Vertical movement	Manual feed rate/ Turn	mm (inch)	1 (0.05 inch)
Vertical movement	Least count of hand wheel	mm (inch)	0.01 (0.0003 inch)
Grinding wheel	Diameter X thickness X bore	mm	178x12x31.78	203x12x31.78	203x12x31.78
		inch	7x1/2x11/2 inch	8x1/2x11/2 inch	8x1/2x11/2 inch
	Speed	rpm	2850
Motors	Grinding spindle	Hp (kw)	1 (0.75)
	Coolant pump	Hp (kw)	0.12 (0.1)
Floor space	LxWxH total space required	mm	1370x1020x1845 (54x40x73 inch)	2030x1370x1630 (80x54x64 inch)	2500x1680x2500 (98x66x98 inch)
Packing dimensions	LxWxH	mm	1270x920x1820 (50x36x72 inch)	1680x1270x1650 (66x50x65 inch)	1780x1400x1700 (70x56x67 inch)

FAQs of Manual Surface Grinder:

Q: What is the primary use of the Manual Surface Grinder?

A: The Manual Surface Grinder is primarily used for industrial applications.

Q: What material is the Manual Surface Grinder made of?

A: The Manual Surface Grinder is made of cast iron.

Q: What are the key features of the Manual Surface Grinder?

A: The key features of the Manual Surface Grinder include high performance and high efficiency.

Q: Does the Manual Surface Grinder come with a warranty?

A: Yes, the Manual Surface Grinder comes with a warranty.

Q: What colors are available for the Manual Surface Grinder?

A: The Manual Surface Grinder is available in white and blue.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Horizontal Surface Grinder' category

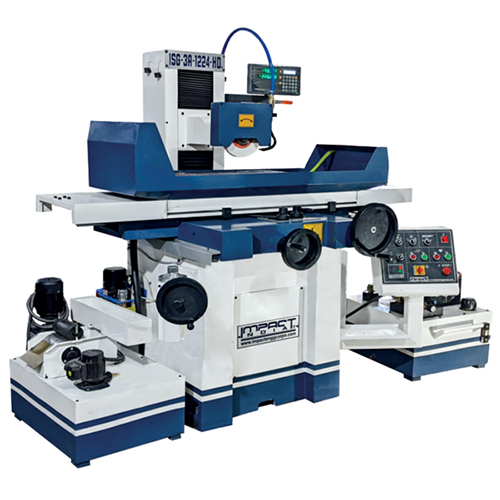

Hydraulic Surface Grinder Minimum Order Quantity : 1 Control System : Manual Type : Surface Grinding Machine Material : Cast Iron Computerized : No Product Type : Surface Grinder Automatic : Yes General Use : Industrial Feature : High Performance
