Hydraulic Surface Grinder

Get a Price/Quote

Product Details:

Product Type Surface Grinder
General Use Industrial
Material Cast Iron
Type Surface Grinding Machine
Computerized No
Automatic Yes
Control System Manual
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Hydraulic Surface Grinder Price And Quantity

Minimum Order Quantity 1 Unit

Hydraulic Surface Grinder Product Specifications

General Use Industrial
Material Cast Iron
Control System Manual
Computerized No
Product Type Surface Grinder
Type Surface Grinding Machine
Feature High Performance
Automatic Yes

Hydraulic Surface Grinder Trade Information

Main Domestic Market All India

Product Description

Model	Parameter	UOM	ISG-618-HD 1A, 2A, 3A	ISG-820-HD 1A, 2A, 3A	ISG-1024-HD 1A, 2A, 3A	ISG-1224-HD
Machining range	Grinding length x Width	mm (inch)	150x450 (6x18 inch)	200x500 (8x20 inch)	250x600 (10x24 inch)	300x600 (12x24 inch)
	Distance between table and spindle center (max)	mm (inch)	250 (10 inch)	400 (16 inch)	400 (16 inch)	400 (18 inch)
	Working surface	mm (inch)	150x450 (6x18 inch)	200x500 (8x20 inch)	250x600 (10x24 inch)	300x600 (12x24 inch)
Table	Max longitudinal movement	mm (inch)	475 (19 inch)	525 (21 inch)	625 (25 inch)	625 (31 inch)
	Max cross movement	mm (inch)	160 (61/4 inch)	212 (8 1/2 inch)	262 (101/2 inch)	312 (121/2 inch)
Longitudinal movement	Max table speed	m/min	5-25
Cross movement	Auto cross feed at each table reversal	mm/ stroke	0.25-6
		inch/stroke	(0.009 inch -0.2 inch)
	Manual feed rate/ turn	mm(inch)	5 (0.2 inch)
	Least count of head wheel	mm(inch)	0.05 (0.0012 inch)
Vertical movement	Manual feed rate/ turn	mm(inch)	1 ( 0.05 inch)
	Least count of head wheel	mm(inch)	0.01 (0.0003 inch)
	Power elevation	mm/min	100 (4 inch)
		inch/min
Grinding wheel	Diameter xThickness x Bore	mm	178x12x31x78	203x12x31.78		203x19x31.78
		inch	7x1/2x11/2 inch	8x1/2x11/2 inch		8x1/2x11/2 inch
Motors	Speed	rpm	2850		2800
	Grinding spindle	hp(kw)	1 (0.75)		2(1.5)
	Vertical up down	hp(kw)	0.05 (0.37)
	Cross feed	hp(kw)	0.5 (0.37)
	Coolant pump	hp(kw)	0.12 (0.1)
Hydraulic system	Working pressure	kg/cm2	15		20
		lb/cm2	210		210
	Power of hydraulic pump motor	hp(kw)	1 (0.75)		2 (1.15)
	Tank capacity	ltrs.	60	100

FAQs of Hydraulic Surface Grinder:

Q: What material is the Hydraulic Surface Grinder made of?

A: The Hydraulic Surface Grinder is made of Cast Iron.

Q: Is the control system of this Hydraulic Surface Grinder manual or computerized?

A: The control system is manual.

Q: Can the Hydraulic Surface Grinder be used for industrial purposes?

A: Yes, the Hydraulic Surface Grinder is designed for industrial use.

Q: Is this machine automatic?

A: Yes, the Hydraulic Surface Grinder is automatic.

Q: What is the type of machine for the Hydraulic Surface Grinder?

A: The Hydraulic Surface Grinder is a Surface Grinding Machine.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Horizontal Surface Grinder' category

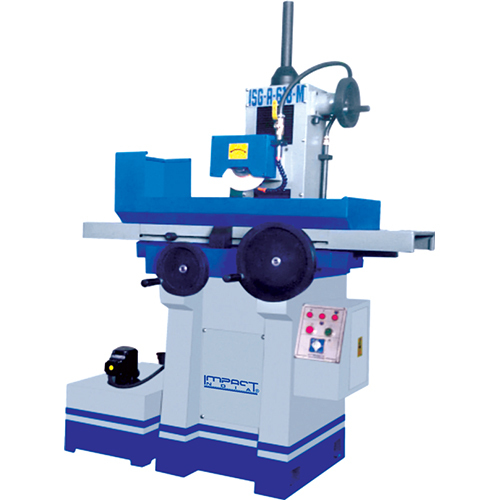

Manual Surface Grinder Minimum Order Quantity : 1 Feature : High Performance, High Efficiency Material : Cast Iron Warranty : Yes Color : Other, White Blue General Use : Industrial
