CNC Series (Vertical Surface Grinder)

Get a Price/Quote

Product Details:

Product Type Surface Grinder
General Use Industrial
Material Cast Iron
Type Surface Grinding Machine
Automatic Yes
CNC Or Not CNC
Warranty Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CNC Series (Vertical Surface Grinder) Price And Quantity

Minimum Order Quantity 1 Unit

CNC Series (Vertical Surface Grinder) Product Specifications

Warranty Yes
CNC Or Not CNC
Product Type Surface Grinder
Automatic Yes
Type Surface Grinding Machine
Material Cast Iron
General Use Industrial

CNC Series (Vertical Surface Grinder) Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Model	Parameter	UOM	IVS- 1240- CNC	IVS- 1640- CNC	IVS- 1680- CNC	IVS- 2080- CNC
Machine range	Grinding length x Width	Mm (inch)	1000 x 300 (40 x 12 inch)	1000 x 400 (60 x 12 inch)	2000 x 400 (80 x 16 inch)	2000 x 500 (80 x 20 inch)
	Working surface	Mm (inch)	1000 x 300 (40 x 12 inch)	1000 x 400 (60 x 12 inch)	2000 x 400 (80 x 16 inch)	2000 x 500 (80 x 20 inch)
	Max component height below the grinding wheel	Mm (inch)	400 (16 inch)	500 (20 inch)		600 (24 inch)
	Weight carrying capacity of table (max)	Kg (Ib)	600
Table	Ma x Longitudinal movement	Mm (inch)	1200 (48 inch)		2200 (88 inch)
	Max cross movement	Mm (inch)	300 (12 inch)	400 (16 inch)	400 (16 inch)	500 (20 inch)
	T-slot (number x width)	Mm (inch)	3x12
Longitudinal movement	Max table speed	m/min	2-20
Vertical movement	Vertical hand wheel down feed per revolution	mpg/mm	0.1, 0.5,1
	Vertical hand wheel down feed per graduation	mpg/mm	0.001, 0.005, 0.01

Grinding whee	Segment dia.	mm	350	450		550
	Segment size	mm	150x80x25
	Speed	rpm	960			750
Motor	Spindle motor	Hp (kw)	20 (15 inch)			30 (22.5 inch)
	Vertical up down	hp	Servo
	Coolant pump	Hp (kw)	0.12 (0.09 inch)
Hydraulic system	Working pressure	kg/cm2	20
Hydraulic system	Hydraulic pump motor	Hp (kw)	3 (2.25)	5 (3.75)	7.5 (5)	10 (7.5)
	Tank capacity	ltrs.	100		150

FAQs of CNC Series (Vertical Surface Grinder):

Q: What material is used to construct the CNC Series (Vertical Surface Grinder)?

A: The CNC Series (Vertical Surface Grinder) is constructed using cast iron.

Q: Is this machine CNC-operated?

A: Yes, the CNC Series (Vertical Surface Grinder) is CNC-operated.

Q: Is this machine suitable for industrial use?

A: Yes, the CNC Series (Vertical Surface Grinder) is designed for industrial use.

Q: Does this product come with a warranty?

A: Yes, the CNC Series (Vertical Surface Grinder) comes with a warranty.

Q: What are the key features of this machine?

A: The CNC Series (Vertical Surface Grinder) offers high performance and high efficiency.

Q: Is the CNC Series (Vertical Surface Grinder) automatic?

A: Yes, this machine operates automatically.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CNC Series Surface Grinder' category

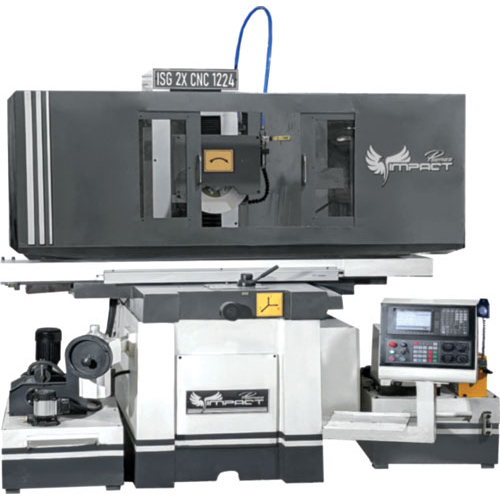

CNC Series (Saddle Type Hydraulic Surface Grinder) Minimum Order Quantity : 1 Warranty : Yes General Use : Industrial Product Type : Surface Grinder CNC Or Not : CNC Automatic : Yes Type : Surface Grinding Machine Material : Cast Iron Feature : High Performance, High Efficiency Computerized : Yes Control System : Manual
