CNC Series (Saddle Type Hydraulic Surface Grinder)

Get a Price/Quote

Product Details:

Product Type Surface Grinder
General Use Industrial
Material Cast Iron
Type Surface Grinding Machine
Computerized Yes
Automatic Yes
CNC Or Not CNC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CNC Series (Saddle Type Hydraulic Surface Grinder) Price And Quantity

Minimum Order Quantity 1 Unit

CNC Series (Saddle Type Hydraulic Surface Grinder) Product Specifications

CNC Or Not CNC
Automatic Yes
Warranty Yes
Control System Manual
Computerized Yes
Type Surface Grinding Machine
Material Cast Iron
Feature High Performance, High Efficiency
General Use Industrial
Product Type Surface Grinder

CNC Series (Saddle Type Hydraulic Surface Grinder) Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

The CNC Series Saddle Type Hydraulic Surface Grinder is a precision-engineered machine designed for industrial applications. Constructed with robust cast iron, it ensures stability and durability even under demanding conditions. Featuring advanced CNC controls and a fully automatic operation, this surface grinding machine delivers high performance and efficiency for intricate grinding tasks. It comes with computerized settings that facilitate precise execution with a least count of 0.001 mm across all axes. The machine features grinding ranges up to 400x800 mm, accommodating components with heights up to 550 mm. It supports heavy-duty operations with a table weight capacity of up to 400 kg and speeds ranging from 2-20 m/min. Equipped with servo motors, power elevation, and coolant pump systems, this grinder is optimized for versatility and reliable function in applications demanding professional-grade output. Warranty inclusion further ensures peace of mind regarding quality assurance. ###

Model	Parameter	UOM	ISG- 3A- 1224 CNC	ISG- 3A- 1624 CNC	ISG- 3A- 1632 CNC
Machine range	Grinding LxW	Mm (inch)	300x600 (12x24 inch)	400x600 (12x24 inch)	400x800 (16x32 inch)
	Working surface	Mm (inch)	300x650 (12x26 inch)	400x650 (12x26 inch)	400x850 (16x34 inch)
	Max component height below the grinding wheel	Mm (inch)	450 (18 inch)	480 (18 inch)	550 (22 inch)
	Weight carrying of table (max)	Kg (lb)	300 (660)	400 (880)	400 (880)
Table	Max longitudinal movement	Mm (inch)	650 (26 inch)	650 (26 inch)	850 (34 inch)
	Max cross movement	Mm (inch)	325 (13 inch)	425 (17 inch)	425 (17 inch)
	T-Slot (number x Width)	Mm (inch)	2x10x (2x0.40 inch)
longitudinal movement	Max table speed	m/min	2-20
longitudinal movement	Least count of hand wheel	mm	0.001
cross movement	Auto cross of hand wheel	mm/stroke	0.001-10
cross movement	Least count of hand wheel	mm	0.001
Vertical movement	Power elevation	mm/min	100
Vertical movement	Least count of hand wheel	mm	0.001
Grinding wheel	Speed	rpm	2800/1400
Motor	Vertical up down	hp	Servo
	Cross feed	hp	Servo
	Table	hp	Servo
	Spindle	kw	2
	Coolant pump	hp	0.5

FAQs of CNC Series (Saddle Type Hydraulic Surface Grinder):

Q: What are the primary features of the CNC Series Saddle Type Hydraulic Surface Grinder?

A: It features CNC controls, automatic operation, computerized precision, a robust cast iron structure, heavy-duty component support, and servo motor-powered movement for high performance and efficiency.

Q: What is the grinding capacity of this machine?

A: The CNC Series offers grinding ranges up to 400x800 mm and accommodates components up to 550 mm in height.

Q: Is this machine suitable for heavy-duty applications?

A: Yes, it supports heavy operations with a table weight capacity of up to 400 kg and speeds between 2-20 m/min.

Q: Does this machine include automated features?

A: Yes, it includes automatic table speed, cross-feed movement, and power elevation for ease of operation.

Q: What type of warranty is provided with this machine?

A: A warranty is included to ensure quality and reliability.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CNC Series Surface Grinder' category

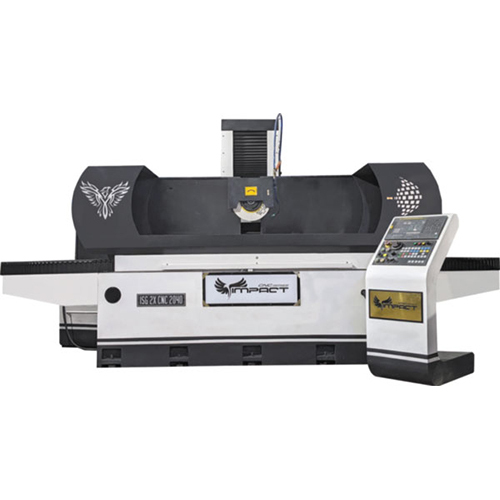

CNC Series (Column Type Hydraulic Surface Grinder) Minimum Order Quantity : 1 Type : Surface Grinding Machine Material : Cast Iron Automatic : Yes CNC Or Not : CNC Warranty : Yes General Use : Industrial Product Type : Surface Grinder Computerized : Yes Feature : High Performance, High Efficiency

Send Inquiry

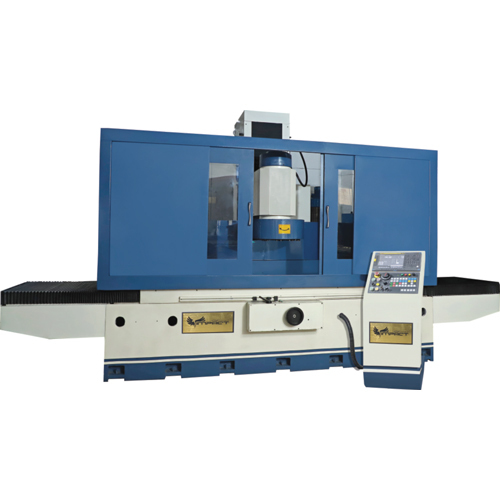

CNC Series (Vertical Surface Grinder) Minimum Order Quantity : 1 Type : Surface Grinding Machine Material : Cast Iron Automatic : Yes CNC Or Not : CNC Warranty : Yes General Use : Industrial Product Type : Surface Grinder
