Horizontal Rotary Surface Grinder

Get a Price/Quote

Product Details:

Product Type Surface Grinder
General Use Industrial
Material Cast Iron
Type Surface Grinding Machine
Computerized Yes
Automatic Yes
Control System Manual
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Horizontal Rotary Surface Grinder Price And Quantity

Minimum Order Quantity 1 Unit

Horizontal Rotary Surface Grinder Product Specifications

Warranty Yes
Control System Manual
Feature High Performance, High Efficiency
Material Cast Iron
Product Type Surface Grinder
Type Surface Grinding Machine
Computerized Yes
General Use Industrial
Automatic Yes

Horizontal Rotary Surface Grinder Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Model	Parameter	UOM	IHR- 2012 CNC	IHR- 2414 CNC	IHR- 4020 CNC
Grinding Area	Magnetic chuck diameter	mmm	500	650	1000
Grinding Area	Swing inside water guard	mm	600	750	1100
Machine range	Grinding height (max)	mm	200	250	300
Table	Infinitely variable speed	rpm	10-50	8-40	5-25
Cross movement	Infinitely variable speed	mm/min	50-200	100-200	100-500
Vertical movement	Each revolution of hand wheel	mm	0.2	0.2	0.2
	Each gradation of hand wheel	mm	0.002	0.002	0.002
	Power elevation	m/min	100	101	102
Grinding wheel	OD x ID xT	mm	250x25x76.2	300x40x76.2	350x50x127
Grinding wheel	Speed	rpm	1440	1440	1440
Motors	Spindle motor	Hp (kw)	5 (3.7)	5 (3.7)	10 (7.5)
	Table rotation	Hp (kw)	1 (0.75)	3 (2.2)	7.5 (5.5)
	Cross feed motor	Hp (kw)	0.5 (0.37)	1 (7.5)	1 (7.5)
	Vertical up down motor	Hp (kw)	0.25 (0.18)	0.28 (0.18)	0.75 (0.55)
	Coolant pump	Hp (kw)	0.15 (0.12)	0.25 (0.18)	0.25 (0.18)
Weight	Net weight	Kg (lb)	1900 (4180)	2500 (5500)	5500 (12100)
Weight	Gross weigh	Kg (lb)	2600 (5720)	3200 (7040)	6300 (13860)

FAQs of Horizontal Rotary Surface Grinder:

Q: Is the Horizontal Rotary Surface Grinder automatic?

A: Yes, this product is automatic.

Q: What material is used in the construction of the Horizontal Rotary Surface Grinder?

A: The product is made of cast iron.

Q: Does the Horizontal Rotary Surface Grinder come with a warranty?

A: Yes, this product comes with a warranty.

Q: Is the control system of the grinder manual or computerized?

A: The control system of the grinder is manual.

Q: What are the key features of the Horizontal Rotary Surface Grinder?

A: The key features include high performance and high efficiency.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Rotary Surface Grinder' category

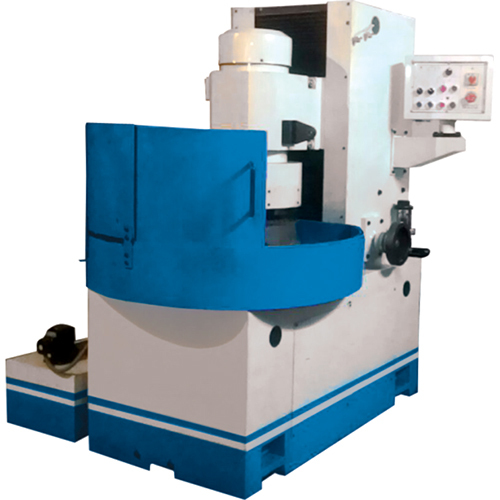

Vertical Rotary Grinder Minimum Order Quantity : 1 Warranty : Yes Feature : High Performance, High Efficiency Control System : Manual Type : Surface Grinding Machine Product Type : Surface Grinder Material : Cast Iron Automatic : Yes General Use : Industrial Computerized : Yes
